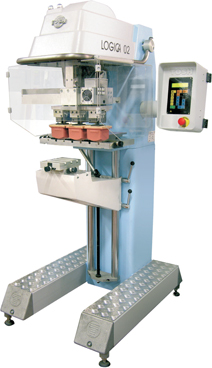

LOGICA 02

The Facts:

  • Operation: All electric with touch screen control
  • Printing Force: 800 N
  • Max Print Speed: adjustable up to 1800 c/h*
  • Number of Colors: 1-2-3-4
  • Max Cup Diameter: 90 mm
  • Standard Cup Sizes: 1-2-3X90 or 4X70
  • Vertical Stroke: 120 mm
  • Max Pad Height: 140 mm (125mm w/ pad shuttle)
  • Power: 230 V, 50/60 Hz, single phase
  • Weight: About 192 Kg (basic model)
  • Dimensions: 932 x 1000 x 1545(h) (basic model)

*We’re going to make your machine go fast and print large, but final speeds and print areas will vary from what’s specified above, based on the application.

Popular Configurations:

  • 1 color basic model

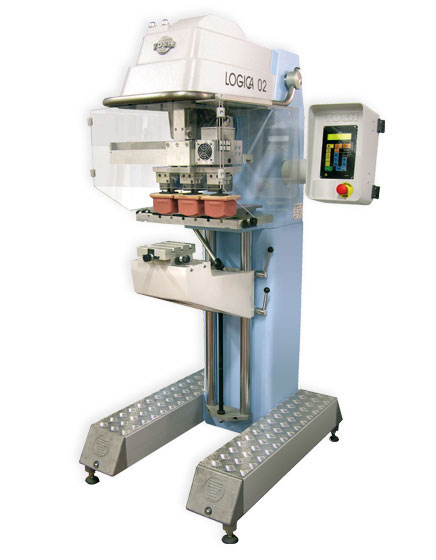

  • 3 colors with pad shuttle

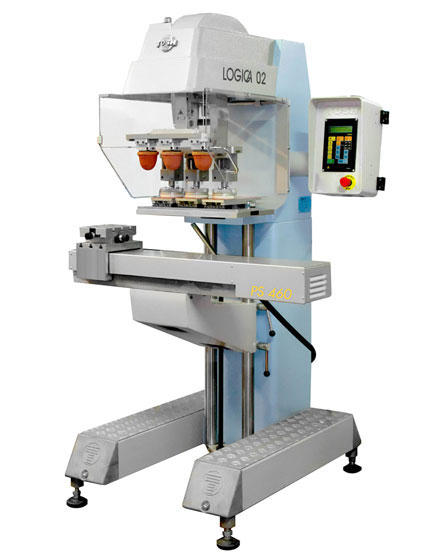

  • 3 color with linear indexer

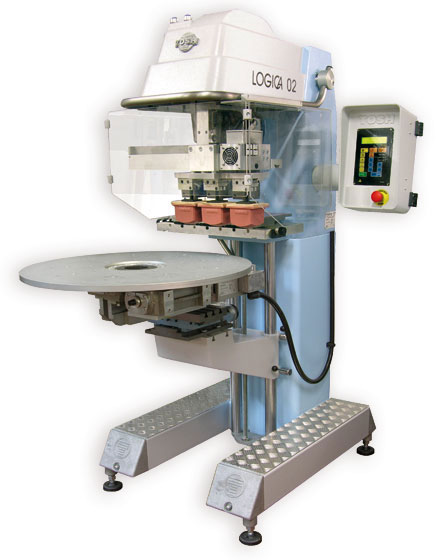

  • 3 colors with pad shuttle and rotary table
